主要特点：
l 1/4” CMOS 传感器, 420TVL
l H.264,720P/D1/VGA/QVGA/QCIF
l :10米,内置 IR-CUT
l SD 卡本地存储,最大32G
l (水平:270,垂直:120), 无线, 即插即用
|
|

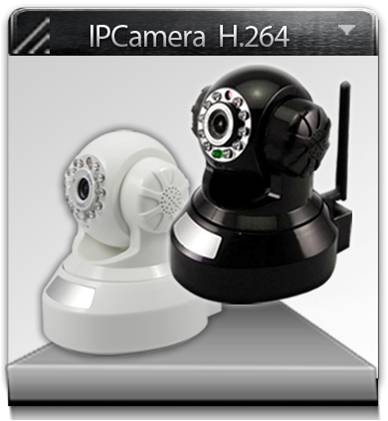

Model No. SGS105-P2P-HD
|
||
|
Catalogue
|
Type
|
Parameters
|
|
Features
|
View by phone
|
Support monitoring via mobile devices on line(such as IOS、Android OS、Symbian OS、WindowsPhone7) Support Mac and windows pc
|
|
Mobile Platform
|
No need to install software, Multi-screen monitoring and managing by mobile phone, alarming, viewing.
|
|
|
View on PC
|
Internet Explorer 6.0 or higher version，Firefox, chrome, safaris
|
|
|
Monitor Advantage
|
Support I Phone、Android、Computer monitor. Microsoft certification plug in, no virus risk.
|
|
|
Sever cluster
|
Using Amazon Cloud PnP servers cluster, Intelligent application and super stable
|
|
|
UID Technology
|
UID scan technology applied, easy to operate, and highly confidential.
|
|
|
Easy operation
|
Plug & Play, technology, penetration degree can be 99%, applicable to any complex network surroundings. Easy operation:
1. Plug the cable and power line, 2. Install computer software, scan code to add camera.
|
|
|
Local Memory
|
Support 32G TF Cards
|
|
|
Super Client
|
1,4,9,16,25,36, 64,81-channel , no user limited , centralized monitor, remote record and playback
|
|
|
System
|
Operation system
|
Embedded Linux OS
|
|
System security
|
Supports three-level account, password, user multi-level authority management
|
|
|
DDNS
|
Provide DDNS for free, like demo.gocam.so
|
|
|
Collection
|
Image sensor
|
1/3” 1.3 Megapixel line by line CMOS sensor
|
|
SNR
|
≥50dB
|
|
|
Minimum Illumination
|
0.1Lux
|
|
|
3A
|
Auto White Balance, Auto Exposure, Automatic Gain
|
|
|
Lens
|
Standard:3.6mm
|
|
|
Video
|
Compression Format
|
H.264
|
|
Resolution
|
720P/D1/VGA/QVGA/QCIF,25FPS(1280*720)
|
|
|
Maximum frame rate
|
25fps
|
|
|
Bit Rate
|
32Kbps～4Mbps can be set
|
|
|
Adjustment
|
Light intensity, contrast ratio, saturation level are adjustable.
|
|
|
Night vision
|
IR-CUT
|
Built in IR-CUT, no color cast in day, clearer images at night
|
|
Effect
|
10 Φ5mm LEDs IR Distance: 10 m
|
|
|
Audio
|
Encode formats
|
ADPCM
|
|
Input
|
Built in Microphone
|
|
|
Output
|
one channel linear output, normal connector Of 3.5mm
|
|
|
Memory
|
Memory Socket
|
Automatic pop-up slot for SD card
|
|
View by SD Card
|
Remote browsing, download of content from 32G TF card
|
|
|
Network
|
Socket
|
RJ-45 10/100Mb self-adaptable Ethernet slot
|
|
Protocol
|
TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP，DHCP, DNS, DDNS, NTP, UPnP, RTSP, PPPoE , etc
|
|
|
WIFI
|
WIFI 802.11 b/g/n
|
|
|
Visitors Online
|
Support 8 visitors viewing on line at the same time
|
|
|
P/T
|
Control Method
|
Pan:270°,Tilt: 90°(speed can be set)Highest speed: 70°/s
|
|
Alarm
|
Alarm Detection
|
Support motion detecting/ 1 way input triggered
|
|
Alarm action
|
1 way output/E-mail pictures /upload video by FTP/messages alarm（coordinate to server)
|
|
|
Physical index
|
Power
|
DC 5V2A
|
|
Consumption
|
<6W
|
|
|
Temperature
|
-10~50℃
|
|
|
Humidity
|
10%~85%
|
|
|
Weight
|
Gross: 600g （Note: in kind prevail）
|
|
|
Package size
|
200*120*180mm (L*W*H)
|
|
