PIA-8COM

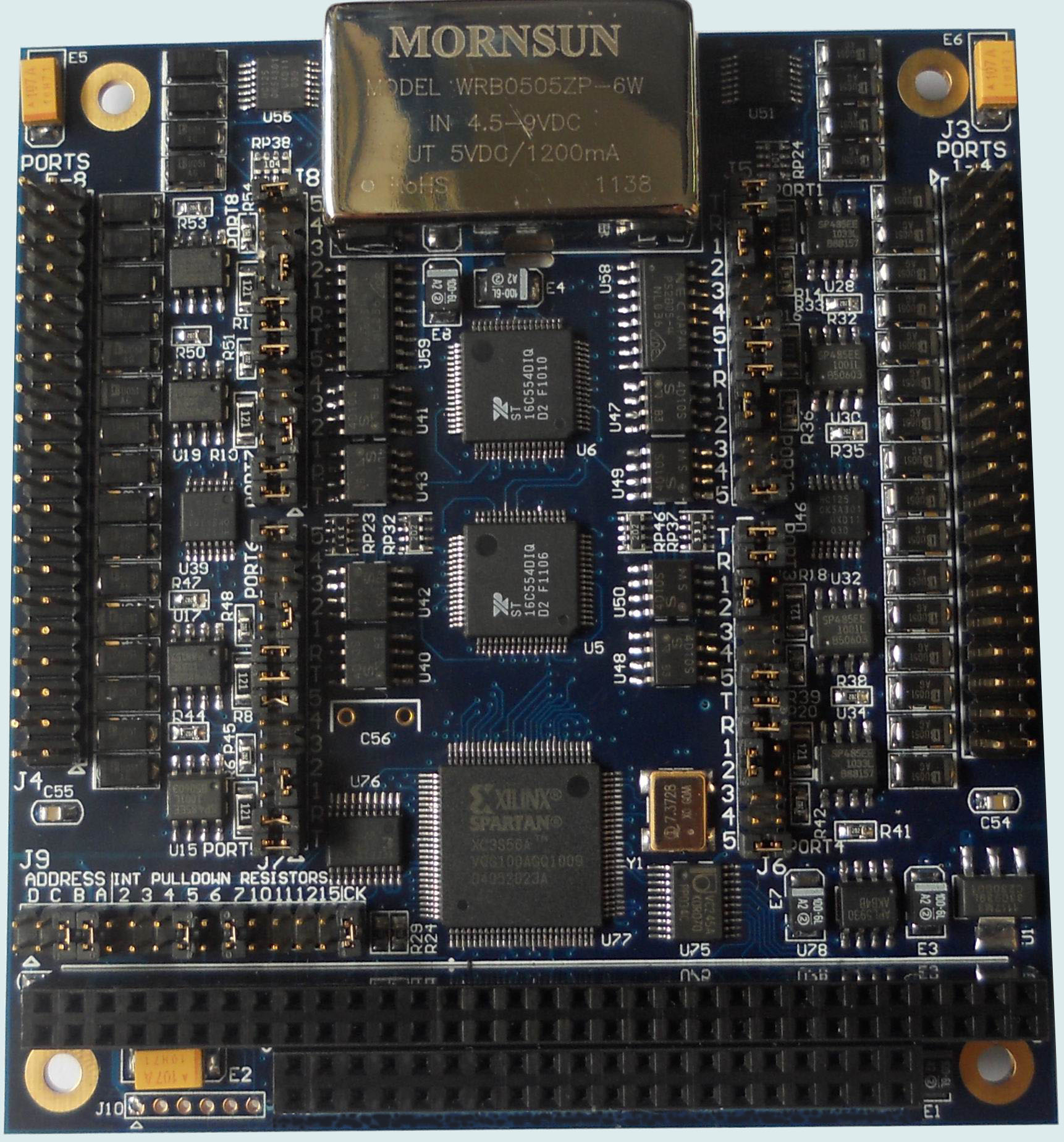

PC/104 Module 8COM 口卡，支持光隔
.jpg)
特点：
• 8x RS-422\485和232(可选）
• 支持8串口光隔离
• All features software configurable
• Maximum baud rate：460.8kbps
• Communications parameters：5, 6, 7, or 8 data bits; Even, odd, or no parity
|
Number of serial ports
|
8
|
|
Protocols
|
RS-232, RS-422, RS-485 (local and no echo)
|
|
Configuration
|
All features software configurable
|
|
Maximum baud rate
|
460.8kbps
|
|
Communications parameters
|
5, 6, 7, or 8 data bits; Even, odd, or no parity
|
|
Short circuit protection
|
Continuous, all outputs
|
|
Input Impedance
|
3KΩ min
|
|
Input voltage swing
|
±30V maximum
|
|
Output voltage swing
|
±5V min, ±7V typical
|
|
Differential input threshold
|
-0.2V min, +0.2V max
|
|
Input impedance
|
12KΩ minimum
|
|
Input current
|
+1.0mA max (Vin = 12V)
-0.8mA max (Vin = -7V) |
|
Differential output voltage
|
2.0V min (RL=50Ω)
|
|
High/low states differentia
output voltage symmetry |
0.2V max
|
|
Number of I/O lines
|
8 in, 8 out
|
|
Input voltage
|
Low: -0.3V min, 0.8V max
|
|
Output voltage
|
Low: 0.0V min, 0.4V max (IOL = 6mA max)
|
|
I/O header
|
2 40-position (2x10) .025" square pin header on .1" centers;
Headers mate with standard ribbon cable (IDC) connectors |
|
Dimensions
|
3.55" x 3.775"
|
|
Power supply
|
+5VDC ±10%
|
|
Current consumption
|
160mA typical, all outputs unloaded
|
|
Operating temperature
|
0°C to +60°C and -40°C to +85°C standard, all versions
|
|
RoHS
|
Compliant
|
|
PIA-8COM-A
|
8X RS-422\RS-485，支持光隔
|
|
PIA-8COM-B
|
8X RS-232,支持光隔
|
