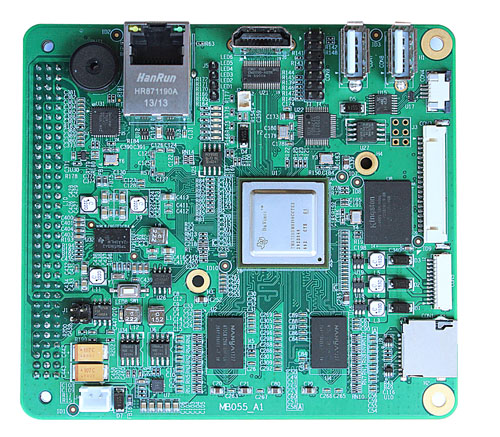

基于TI DaVinci™多媒体处理器DM8148，ARM+DSP 架构，支持LVDS、HDMI 显示输出。适用于工业级的应用，如数控机床控制，数控系统人机界面，工业级主控板等。
.jpg)
| 硬件规格 | ||
| CPU | TI DM8148 | 1GHz ARM Cortex™-A8 Core
750MHz TMS320C674x+ DSP POWERVR SG™ 2D/3D Graphics Engine Programmable High-Definition Video Image Coprocessing (HDVICP v2) Engine |
| RAM | 1GByte DDR3 32-bit 800MHz | |
| FLASH | SPI FLASH | 4MByte |
| eMMC FLASH | 4MByte | |
| Display | Resolution | Single: 1920X1200 @ 30fps Dual: 1280X1024 @ 24fps |
| Display Data Control | High Performance GPU Integrated, 3D Graphics Engine | |
| I/O Physical | Video | 1 x DVI-I |
| Audio | 1 x 3.5mm Stereo Audio Phone | |
| 1 x Built-in Stereo Audio Phone | ||
| UART | 1 x Built-in Stereo Audio Phone | |
| USB(1.0/2.0) | 4 x 3.3V TTL UART ( 4 Lines ) | |
| Network | LAN | 1 x 10/100/1000M Ethernet , RJ45 , Support WOL |
| WLAN | 1 x USB WIFI Module Interface ( pin-socket ) | |
| Encrypt | 1 x I2C Interface Encrypt Module | |
| RTC | 1 x RTC Battery Socket | |
| Button | 1 x Power Button | |
| 1 x Reset Button | ||
| 1 x Revert Button | ||
| LED | 1 x Power Indicator | |
| Power | 1 x 5V 2A DC Power Connector | |
| Boot Mode Select | Jumper | |
| Buzzer | 1 x Boot Indicator Buzzer | |
| Dimension | 150mm (L)x 133mm (W) | |
| Temperature | Operation | 0°to 70°C |
| Storage | -40°to 85°C | |
| 软件规格 | ||
| Linux | Uboot Version | u-boot-2010.06 |
| Kernel Version | Linux-2.6.37 | |
| OS | Ubuntu 11.04 | |
|
Configuration And service |
ifconfig , route etc. | |
| Basic Tools | cat,chmod,echo,free,init,kill,ls,mkdir,mount,ps,reboot,rm,lsmod,rmmod etc. | |
| Device Driver | Provide relate device drive and source code | |
| Lib | DSP Lib，GTK,X11,OpenGL etc. | |
